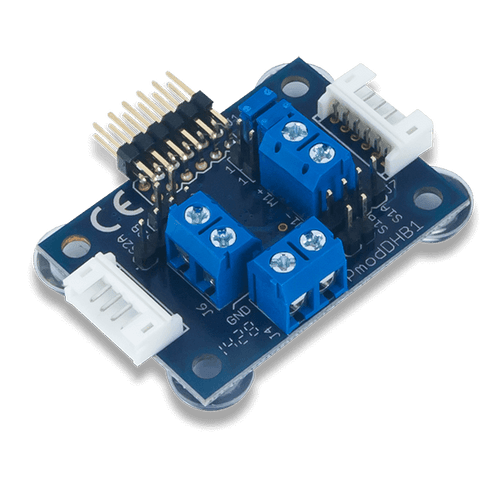

Pmod DHB1: Dual H-bridge product image.
  • Pmod DHB1: Dual H-bridge product image.
  • Top view product image of the Pmod DHB1: Dual H-bridge.
  • 底视图产品的形象the Pmod DHB1: Dual H-bridge.
  • Size comparison product image of the Pmod DHB1: Dual H-bridge and a US quarter (diameter of quarter: 0.955 inches [24.26 mm]; width: 0.069 inches [1.75 mm]).
  • 3D CAD model of the Pmod DHB1: Dual H-bridge.

Pmod DHB1: Dual H-bridge

Currently out of stock. Estimated return is mid-October 2022. Check distributor inventory for immediate purchasing options.

(1 review) Write a Review
SKU:
410-259

The Pmod DHB1 uses the Texas Instruments®DRV8833 dual H-Bridge motor driver chip to drive two DC motors or a single stepper motor. Each H-Bridge can be driven by GPIO signals.

  • Dual H-Bridge capable of 1.5A RMS
  • Two quadrature encoder channels for motor feedback
  • Two JST 6-pin ports for connection to Digilent motor/gearbox
  • Over-current protection
  • Recommended 10.8 V max motor voltage
  • Logic input voltage range of 2.5 V to 5 V
  • Small PCB size for flexible designs 1.3“ × 1.8” (3.3 cm × 4.6 cm)
  • Follows Digilent Pmod Interface Specification Type 5
  • Pmod DHB1
  • Custom antistatic Pmod packaging

Quickly find what you need to get started and reduce mean time to blink.

所有产品支持包括文档,按工程cts, and the Digilent Forum can be accessed through the product resource center.

Resource Center

Quick Links

Reference Manual
Schematic

1 ReviewHide ReviewsShow Reviews

  • 5
    Great to build 3-phase inverter too!

    Posted by Marc Perron on 28th Nov 2017

    Thanks Digilent, We have used this product to demo our 3-phase PWM IP Core product with a BLDC motor. By using 2 PMOD dual bridge components, one can actualy build a 3-phase inverter to drive 3-phase loads such as a BLDC. Here's a one minute demo of the result. https://www.slideshare.net/alizemip/alizem-pwm-1mindemo Best Regards, Marc Perron, Ph.D., ing. Alizem inc.
