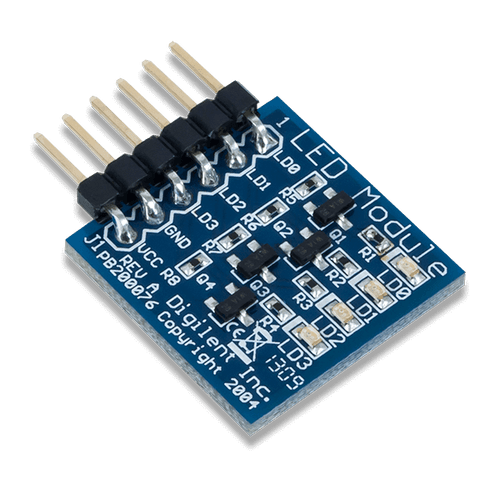

The Pmod LED has four user LEDs that are individually driven through logic-level transistors.
- 4 high-bright red LEDs
- Clearly visible logic level indicators
- Required driving current of < 1 mA
- Small PCB size for flexible designs 0.8“ × 0.8” (2.0 cm × 2.0 cm)
- 6-pin Pmod connector with GPIO interface
- Follows Digilent Pmod Interface Specification Type 1
- Pmod LED
- Custom antistatic Pmod packaging
Quickly find what you need to get started and reduce mean time to blink.
All product support including documentation, projects, and the Digilent Forum can be accessed through the product resource center.
