NetFPGA-1G-CML

Kintex-7 FPGA开发板

Key Specifications

Logic Cells

50,950 slices,
(4 6-input LUTs & 8 flip-flops each)

DDR3

512MB dynamicRAM(800MHz)

QDRII+

4.5MB staticRAM(450MHz)

BPI Flash

1-Gbit BPI Flash

Oscillator

Low-jitter 200MHz

Block RAM

16Mbit

DSP Slices

840

CMTs

10 with 1 PLL and one
mixed-mode clock manager each

Ethernet

10/100/1000 PHYS with RGMII

Encryption

AES bitstream encryption and
SHA-256 authentication w/
battery-backed encryption key

Connectivity and On-board I/O

Pmod Connectors

2 Pmod ports

PCI

Gen 2 PCI Express

Microcontroller

32-bit PIC microcontroller

FMC

High pin count FMC connector
(100 select I/O and
4 GTX serial pairs)

I/O

400 select I/O ports
(250 high range, 150 high speed)

Buttons

4

LEDs

4

SD

SD card slot

Electrical

Power

12V 5A or greater power source

Logic Level

3.3V

Physical

Width

4.2 in

Length

7.2 in

Design Resources

GitHub

NetFPGA GitHub

Documentation

Primary IC

Kintex-7(XC7K325T-1FFG676)

Schematic

The NetFPGA-1G-CML is retired and no longer for sale in our store.

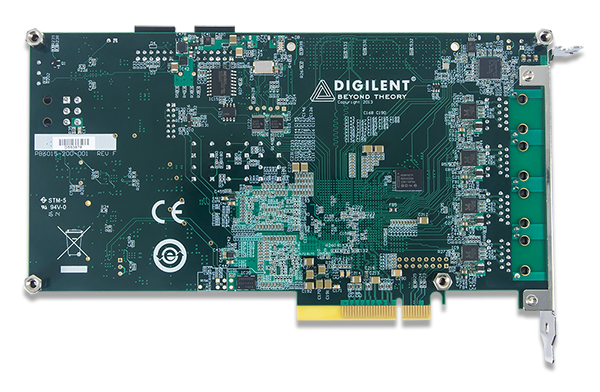

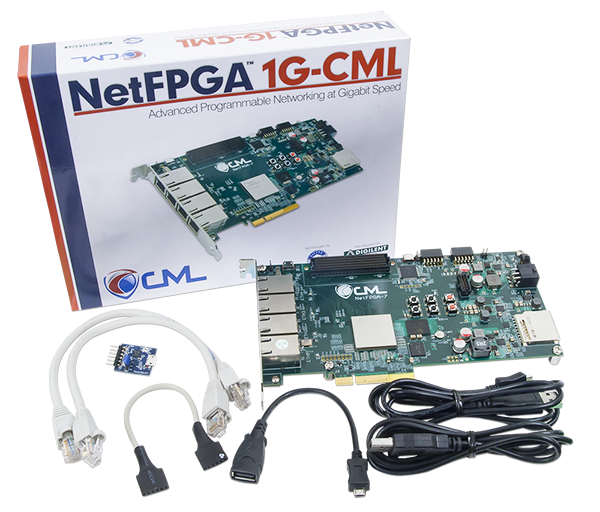

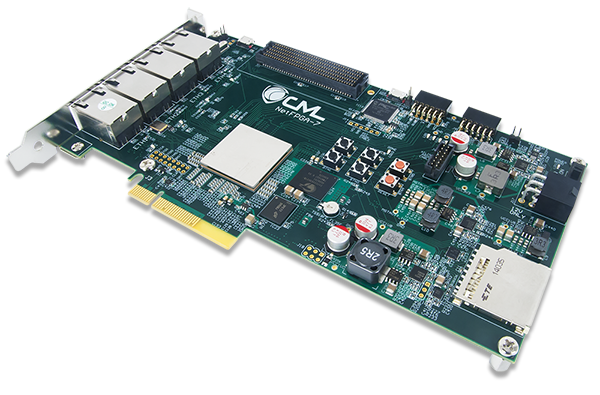

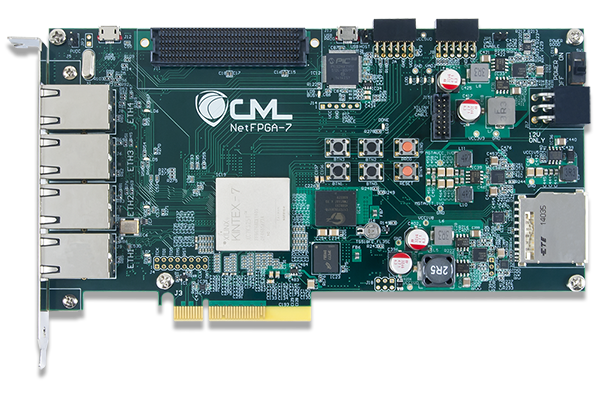

The NetFPGA-1G-CML is a versatile, low-cost network hardware development platform featuring a Xilinx® Kintex®-7 XC7K325T FPGA and includes four Ethernet interfaces capable of negotiating up to 1GB/s connections. 512MBof 800MHzDDR3 can support high-throughput packet buffering while 4.5MBof QDRII+ can maintain low-latency access to high demand data, like routing tables. Rapid boot configuration is supported by a 128MBBPI Flash, which is also available for non-volatile storage applications. The standard PCIe form factor supports high speed x4 Gen 2 interfacing. The FMC carrier connector provides a convenient expansion interface for extending card functionality via Select I/O and GTX serial interfaces. The FMC connector can support SATA-II data rates for network storage applications. The FMC connector can also be used to extend functionality via a wide variety of other cards designed for communication, measurement, and control.
