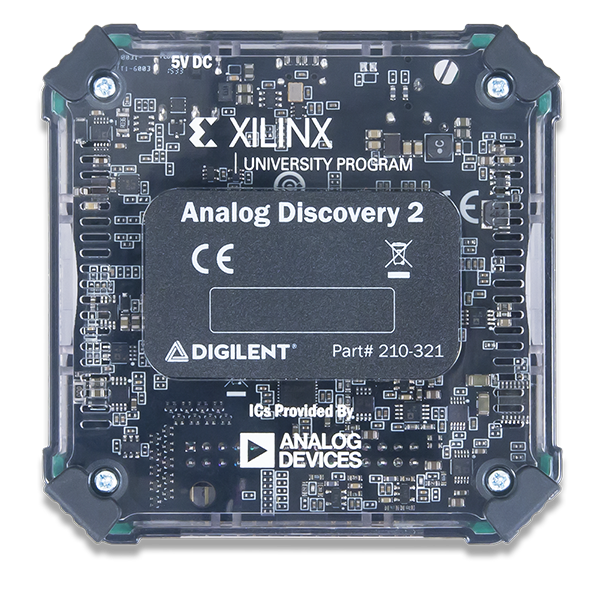

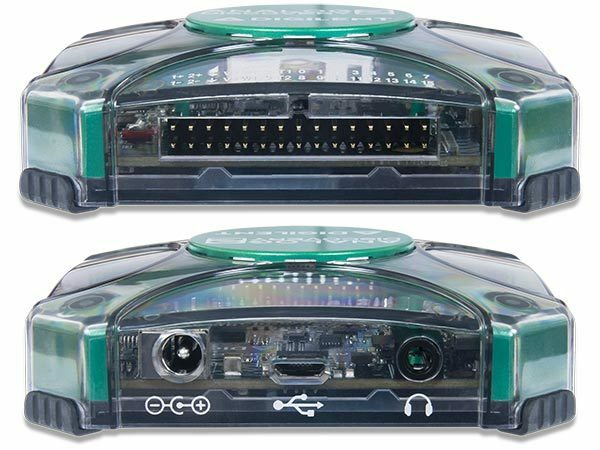

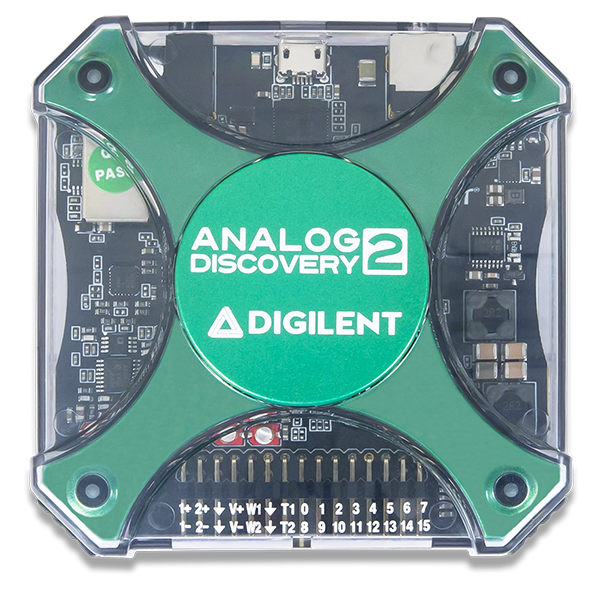

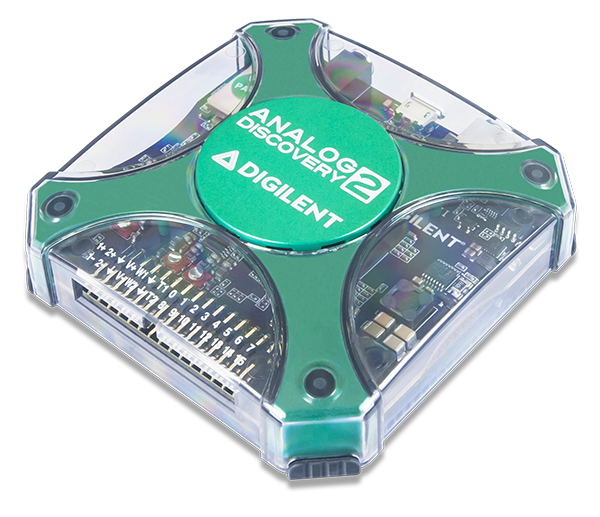

Analog Discovery 2
The Digilent Analog Discovery 2™, developed in conjunction with Analog Devices®, is a multi-function instrument that allows users to measure, visualize, generate, record, and control mixed signal circuits of all kinds. The low-cost Analog Discovery 2 is small enough to fit in your pocket, but powerful enough to replace a stack of lab equipment, providing engineering students, hobbyists, and electronics enthusiasts the freedom to work with analog and digital circuits in virtually any environment, in or out of the lab.
得到Started
Documentation
Tutorials
WaveForms Instrument Guides
Other Guides
Third Party Software Support
Accessories
Breadboard Adapter
The Breadboard Adapter, featuring a small breadboard that connects to the Analog Discovery 2, is a way to easily set up and demonstrate portable circuits.
For more information, see theBreadboard Adapter's Resource Center.
Breadboard Breakout
The Breadboard Breakout allows the pins of the Analog Discovery 2 to be directly connected to a breadboard.
For more information, see theBreadboard Breakout's Resource Center.
BNC Adapter
The BNC Adapter allows standard BNC-terminated test leads and probes to be used with the Analog Discovery 2.
For more information, see theBNC Adapter's Resource Center.
Impedance Analyzer
The Impedance Analyzer Adapter for the Analog Discovery 2 makes WaveForms' Impedance Analyzer instrument easier to use by providing the reference resistors and relays required for the instrument's use. The appropriate reference circuit for the job is automatically selected.
For more information, see theImpedance Analyzer's Resource Center.
Audio Adapter
The Audio Adapter, using the WaveForms' Oscilloscope instrument, provides the feature to analyze audio signals from external sources. It has one Mono and one Mono/Stereo 3.5mm Audio Jack connector to facilitate the interface with external audio generators.
For more information, see theAudio Adapter's Resouce Center.
Highlighted Community Projects
Featured Projects
Hackster Projects
A complete list of Hackster projects featuring the Analog Discovery 2 can be found onprojects.digilentinc.com
